Body Material: ABS
Size: 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″)
Filling: Epoxy+Quartz sand
Lens Material: PMMA
Road Stud Marker Reflector Features:
•Road Stud Marker water, oil, chemical, and heat resistance.
•Aluminium Road Stud Marker can work more than 3 years normally.
•Very high reflectivity.
•Road Stud Marker reflector easy installation with glues.
•Photometric values:exceeds 600(mcd/lux).
Road Stud Marker Reflector Parameters:
| Body material: | ABS |
| Filling: | Epoxy+Quartz Sand |
| Lens Material: | PMMA |

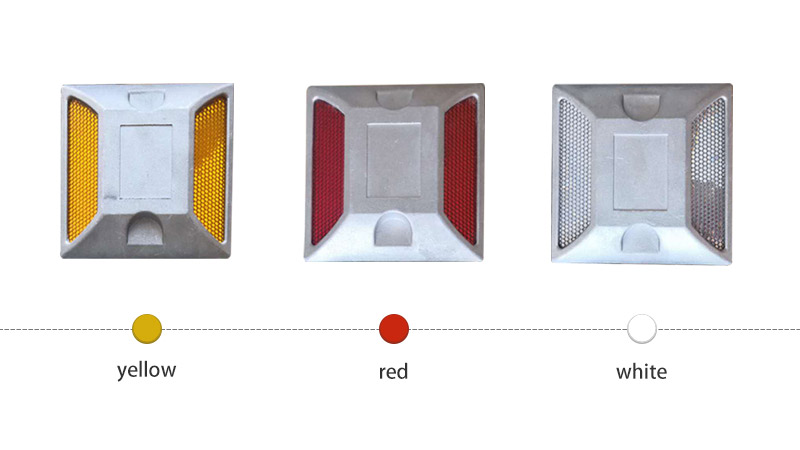

| Reflector type: | Double side/Single side |
| Quality: | ASTM D4280 & EN1463-1 standard |
| Size: | 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″) |
| Packing: | 38*36*22.5cm, 50pcs/ctn (14.96″*14.17″*8.86″, 50pcs/ctn) |
| Weight: | 320g/pc; 19kg/ctn (0.71bs/pc; 41.89bs/ctn) |
Installation Method Of Road Stud Marker Reflector:
1. Determine the installation location and distance, clean the road surface, and ensure that the road stud marker reflector is installed on a flat road surface.
2. Clean the bottom of the Road Stud Marker reflector and apply the epoxy glue evenly to the back of the studs.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all road stud marker reflectors are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the road stud markers.
